Sticker Labeling Machines For Round Products
Sticker Labeling Machines For Round Products

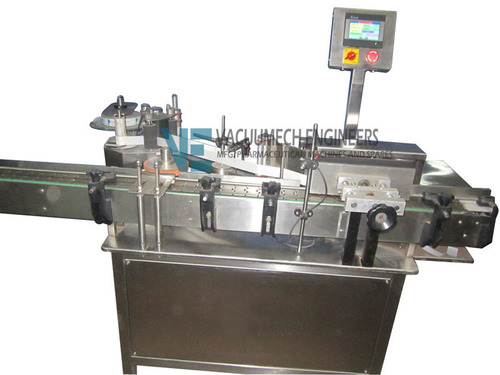

Automatic Self Adhesive Vertical Sticker Labeling Machine VASAL-150
(Photograph is for the reference purpose only. Machine Construction & Specification are subject to change without prior Notice due to Continues up-gradation Process)
| Technical Specifications |
| Model | VASAL-150 |
| Direction of Movement | Left to Right |
| Output/Hour* | 3600 to 9000 Nos. |
| Electric Specifications | Conveyor Motor | 0.50 HP/ 415 Volts/ 50 Hz |
| Pressing Device Motor | 0.25 HP/ 220 Volts/ 50 Hz |
| Sticker Roll Motor | Stepper 6V / 40 kg Servo 400/750 watt |
| Height of Conveyor | 860 ± 50 mm |
| Input Specifications |
| Label Specification | Length | 30 mm to 180 mm |
| Width | 16 mm to 100 mm |
| Roll Diameter | Max. 300 mm X ID 75 mm |
| Space between two label | 3 mm in anti clock wise |
| Container Size | Round | Ø 22 mm to Ø 100 mm |
| Respective height : 40 mm to 240 mm |
| Utility Requirement |
| Electric Supply | 3 Phase + Neutral + Earthing |
| Electric Load | 1 kW |
| Air Consumption | 2 CFM @ 6 kg for printer or rejection device if such installed |
Salient Features
GMP design with complete SS structure
High production speed
PLC based operation having security package and counter
Product data storage facility
Very accurate label placement
Requires no bottle /label change parts
Very less down time for change over
Suitable for Glass, Pet, HDPE all kind of surfaces
Very compact design of applicator made of aluminum
Various batch code printers can be installed (optional)
Bar code detection, missing label detection & misprinting detection can be installed with rejection (optional)
