SEMI AUTOMATIC VOLUMETRIC LIQUID FILLING MACHINE

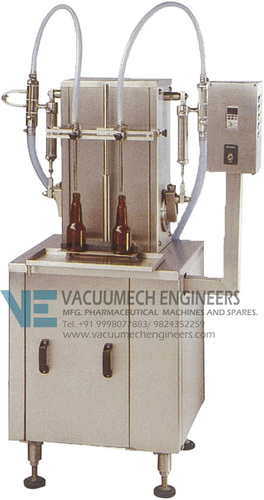

VLF 30 SEMI AUTOMATIC VOLUMETRIC LIQUID FILLING MACHINE
Semi Automatic Volumetric Liquid Filling Machine is a compact machine that is extensively used for Injectable liquid & Oral Liquid Filling. The welded steel frame is completely enclosed with stainless steel sheet. The doors are provided to operate the machine. The basic unit consists of Reciprocating Filling, Driving type Nozzle, , Container Platform, Container Centering Device, syringe Holders, HDPE Tubes and Piles and on line starter. The feeding and unloading of the container is done manually.
Suitable for Industries like Food and Beverages, Chemicals, Pharmaceuticals, Cosmetic, etc.
Reciprocating Filling Nozzle With Self Centering Devices, S. S. Syringes Twin Pusher System.
No. of Sealing Head
VLF – 30
Diameter : Ø 22 mm to Ø 100 mm
Height : 200 mm Maximum
Change parts required
Syringes, Nozzle & Filling Hose pipe.
0.5 H.P/415 Volts/ 50Hz AC Variable speed motor
220 Volts, 50Hz (1 Phase) + Earthing
Dimensions (in mm)
1000 L x 800 W x 1500 H (for Single Head Machine)
The machine body is covered with the S.S. sheet. The matt finished body
all contact parts are of S.S.316
S.S. cladding or hard chrome plating of all exposed parts.
In built control panel
Adjustable bottle height gauge for the quick setting.Volumetric Liquid Filling system.
Nozzle driving System
It is widely used for milk filling, oil filling, ointment filling, shampoo filling, juice filling, perfume filling, food product filling – in Jar, Can, Vial, Bottle, Tub & any Containers.
The unit is built on strong structural frame for rigidity and provides vibration free movement of operation.
The Stroke of nozzle holder and the height of the nozzles id adjustable for achieving smooth entry and exit of nozzles inside the neck of containers and avoids splash/ spillage of liquid or dropping at sides.
No breakage of containers in the event centering is not done correctly as nozzle holder is spring loaded.
The unit can be quickly dismantled for the maintenance just by opening front cover.
Each and every part can be attended for cleaning operation of maintenance without any hindrance.
High precision in manufactured syringe to achieve high accuracy in fill size and drip proof performance.
Note: Specification can be changed as per customer requirements.
