Semi Automatic Volumatric Liquid Filling Machine

Semi Automatic Volumatric Liquid Filling Machine
Semi Automatic Volumatric Liquid Filling Machine
Product Code : VSLF
Product Description

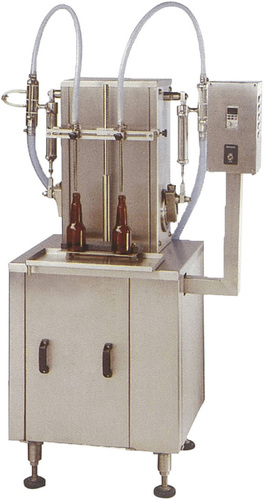

Semi Automatic Two Head Volumetric Liquid Filling Machine


(Photograph is for the reference purpose only. Machine Construction & Specification are subject to change without prior Notice due to Continues up-gradation Process)


Technical Specifications

Model

VSLF-40

Output/Hour*

700 to 2400

Number of heads / Syringes

2 Nos.

Fill Size **

5 ml to 1000 ml

Electric Specifications

0.5 HP / 415 Volts / 50 Hz (Main Machine)

(1 HP if Maximum volume is 1000 ml in single doze)

Change parts required

(A) Syringes (B) Nozzle (C) Inlet & outlet hose pipe



Input Specifications

Container Neck Diameter

Minimum 22 mm

Container Size

Round

Ø 28 mm to Ø 100 mm

Respective Height : 58 mm to 240 mm

Flat /

Square

Length : 15 mm to 100 mm

Width : 10 mm to 50 mm

Height : 58 mm to 240 mm



Utility Requirement

Electric Supply

3 Phase + Neutral + Earthing

Electric Load

0.5 kW


Salient Features

  • Manual bottle placement for filling

  • Accuracy ± 1 % in single doze

  • Variable speed control through ACVFD

  • Body covered with SS 304 sheet

  • All contact parts SS 316

  • A unit to fill variety of liquid and can be used for various type of containers

  • Minimum change over time from one size to another container or fill size
