|Home||» Products||» Manually Operated Machines||» SEMI AUTOMATIC ROPP CAP SEALING MACHINE|
SEMI AUTOMATIC ROPP CAP SEALING MACHINE

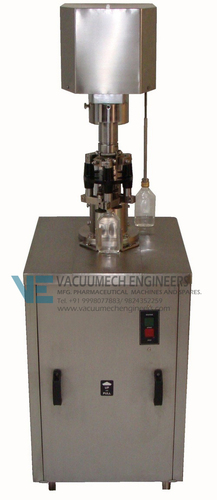

VRCS 30 SEMI AUTOMATIC ROPP CAP SEALING MACHINE
Semi Automatic Ropp Cap Sealing Machine is a compact machine that is extensively used for sealing of ROPP caps on the bottle. The welded steel frame is completely enclosed with stainless steel sheet. The doors are provided to operate the machine. The threading and sealing rollers are used for threading and sealing the ROPP cap. Manually filled containers are placed on the machine in such a manner that the body and neck of the container are positioned below the rotating head for the threading and sealing. The feeding and unloading of the container is done manually.
Suitable for Industries like Food and Beverages, Chemicals, Pharmaceuticals, Cosmetic, etc.
Machine is suitable for round or other shape of glass, plastic, PET, LDPE, HDPE bottles capping.
No. of Sealing Head
VRCS – 30
Diameter : Ø 22 mm to Ø 100 mm
Height : 58 mm to 210 mm
Length : 15 mm to 100 mm
Width : 10 mm to 50 mm
Height : 58 mm to 240 mm
22mm, 25mm & 28mm
Change parts required
0.5 H.P/415 Volts/ 50Hz AC motor
220 Volts, 50Hz (1 Phase) + Earthing
Dimensions (in mm)
1000 L x 800 W x 1500 H (for Single Head Machine)
The machine body is covered with the S.S. sheet. The matt finished body
all contact parts are of S.S.316
S.S. cladding or hard chrome plating of all exposed parts.
In built control panel
Adjustable bottle height gauge for the quick setting
The head movement is handle by the motor
For the different gauges and sizes of the caps the sealing pressure can be set.
The filling range from 5 ml to 100 ml, with semiautomatic facility.
Very accurate, ± 1 % accuracy in single dose.
Depends on the capacity of the bottles, three different speeds are provided.
Very flexible for the various types of liquids and containers.
The noise level and power consumption are very low.
For the different container, no need to change the machine parts.
Note: Specification can be changed as per customer requirements.
