Semi Automatic Paste Filling Machine

Semi Automatic Paste Filling Machine
Semi Automatic Paste Filling Machine
Product Code : VSVLF
Product Description

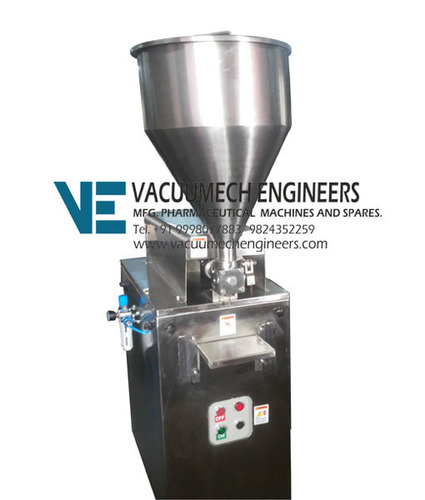

Semi Automatic Single Head Paste Filling Machine VSVLF

(Photograph is for the reference purpose only. Machine Construction & Specification are subject to change without prior Notice due to Continues up-gradation Process)


Technical Specifications

Model

VSVLF-40

Output/Hour*

700 to 2400

Application

Application Filling Viscous Liquids in to the Bottles /Containers

Number of heads / Syringes

1 Nos.

Fill Size **

5 ml to 1000 ml

Electric Specifications

0.5 HP / 415 Volts / 50 Hz (Main Machine)

(1 HP if Maximum volume is 1000 ml in single doze)

Change parts required

(A) Piston block, (B) Nozzle.



Input Specifications

Container Neck Diameter

Minimum 22 mm

Container Size

Round

Ø 28 mm to Ø 100 mm

Respective Height : 58 mm to 240 mm

Flat /

Square

Length : 15 mm to 100 mm

Width : 10 mm to 50 mm

Height : 58 mm to 240 mm



Utility Requirement

Electric Supply

3 Phase + Neutral + Earthing

Electric Load

0.5 kW

Salient Features

  • Manual bottle placement for filling

  • Accuracy ± 2 % in single doze

  • Variable speed control through ACVFD

  • Body covered with SS 304 sheet

  • All contact parts SS 316

  • A unit to fill variety of liquid and can be used for various type of containers

  • Minimum change over time from one size to another container or fill size
