Semi Automatic Loadcell Based Auger Powder

Semi Automatic Loadcell Based Auger Powder
Semi Automatic Loadcell Based Auger Powder
Product Code : VAF-C50
Brand Name : VACUUMECH ENGINEERS
Product Description

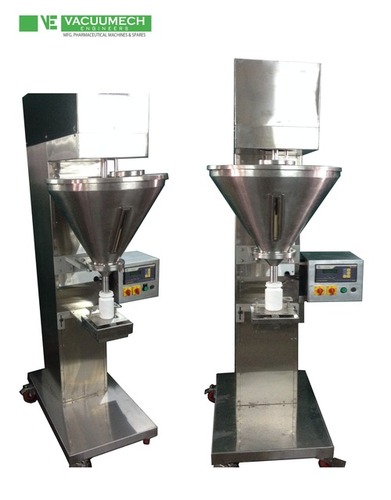

VAF-C50 Semi Automatic Loadcell Based Auger Powder Filling Machine



  1. BRIFE DISCRIPTION

We manufacture, supply and export the reliable and performance oriented, widely used auger filler machine. The user friendly machines are facilitating with attractive design and finish. The auger filler machine is highly accurate machine. The machine body is fabricated with superior quality of stainless steel, gives it good finish. The contact parts are made from SS316 and hopper are made from SS304. We used standard quality of clutch and break. We use latest technology for the fabrication of the system. The machine is equipped with microprocessor control system.

Our research and development unit pays full attention on the customized specification. The varied diameter and height can be customizing as per demand.


  1. SPECIFICATIONS

  • Single Head Machine.

  • Apply for any type of Dry Powder/granules.

  • Approximate Speed: Approx 10 – 20bottle /min (depending on operator speed & product characteristics).

  • Microprocessor control System by weigh

  • It is suitable to fill the powders into bottles, cans, jars, and bags. The size of the filling mouth is adjustable according to different containers.


  1. TECHNICAL SPECIFICATION

Semi Automatic Loadcell Based Auger Powder Filling Machine

Application

Any type of Powder/granules

Auger

AC motor driven with clutch break mechanism.

Output/Hour

Upto 1000/Hour

Filling Range

10 grams to 2 kg. (With Different Size Of Augur And Funnel).

Filling Accuracy

Up to 2% depending on consistency on powder density.

Hopper Capacity

25kgs.

Change parts Required

  1. Funnel (According to container mouth)

  2. Auger

Loadcell

5 kg loadcell.

Electrical Rating

  • Auger Motor and Agitator Motor


1 H.P AC Variable speed motor


Power required

220 Volts, 50Hz (1 Phase) + Earthing

Electric Load

1 HP

Dimensions (in mm)

900 L x 900 W x 2000 H

Weight

200Kgs


  1. SALIENT FEATURES

  • VAF-C50 is Suitable for filling dry syrup, granules, crystals, food products, pesticide, powders etc.

  • The transmission system is driven by AC variable motor with clutch break mechanism.

  • Auger screw measuring, high filling accuracy

  • Semi-auto type. Control by foot pedal, suitable to fill into bags.

  • Separate drive for stirrer. The set of stirrers are machined for a knife edge, to stir the product appropriately for high accuracies.

  • Adjustable height of container stand

  • All contract parts are made out of Stainless Steel

  • The unit is made compact & versatile as per Gmp Norms.




Note: Specification can be changed as per customer requirements.
