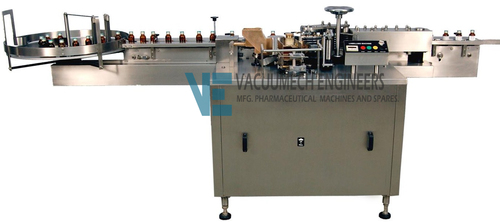

Automatic Wet Glue Labelling Machine

Automatic Wet Glue Labelling Machine
Automatic Wet Glue Labelling Machine
Send Inquiry
Product Code : VHL -150
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price
  • 250000 INR
Product Specifications
  • Product Type
  • Labeling Machine
  • Material
  • S.S.304
  • Computerized
  • No
  • Automatic Grade
  • Automatic
  • Control System
  • Frequency Speed Control
  • Drive Type
  • Electric
  • Accuracy
  • 1 %
  • Power Source
  • Electric
  • Voltage
  • 220 Volt/Ohm (v/ohm)
  • Dimension(L*W*H)
  • 6x4x4 Foot (ft)
  • Feature
  • Lower Energy Consumption, ECO Friendly, High Performance, Simple Control
  • Warranty
  • 1 year
Product Description


    Technical Specifications



    Direction of Movement

    Left to Right


    3600 to 9000

    Electric Specifications

    Main Motor

    0.75 HP/415 Volts/ 50 Hz

    Vacuum Pump

    0.5 HP/ 415 Volts/ 50 Hz

    Height of Conveyor

    860 ± 50 mm

    Change parts required

    (A) Container: Feed Worm

    (B) Label: Label Muster, Upper – Lower Plates, Pusher Plate


    Input Specifications

    Label Specifications


    20 mm to 140 mm


    16 to 90 mm


    65 to 70 GSM (The Direction of Grains of the label must always be parallel to the containers axis. The paper should be flexible)

    Container Size


    Ø 16 mm to Ø 100 mm

    Respective height : 40 mm to 240 mm


    Utility Requirement

    Electric Supply

    3 Phase + Neutral + Earthing

    Electric Load

    1 kW


    • Stainless Steel cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
    • Adjustable Conveyor Height to align with other machines of the line.
    • ACVFD for speed control.
    • Very less time required in changing over from one size container / label to another.
    • Special self-aligning bearings ensure smooth and trouble free rotation of the components.
    • No container – No label mechanism avoids wastage of labels and also helps in keeping the unit neat & clean.
    • Suitable for overlap labeling and flag type labeling where the length of label is more than circumference of the container.
    • A highly efficient vacuum pump develops sufficient vacuum to hold any size of the label on the pick-up cylinder.
    • Complete protection of the motors is ensured by the contactors and relays of appropriate ratings.
    • Equipped with Code over printing device and Digital Counter (optional)
    • Flat bottles can be labeled on one surface with an attachment (optional)
    • Bigger size of labels up to 165mm Length & 120mm width can be handled with special design (optional)
