Automatic Vertical Sticker Labelling Machine

Automatic Vertical Sticker Labelling Machine
Automatic Vertical Sticker Labelling Machine
Product Code : VSAL-120
Brand Name : VACUUMECH ENGINEERS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • 200000 - 300000 INR
Product Specifications
  • Product Type
  • Labeling Machine
  • Material
  • S.S.304
  • Application
  • Sticker Labeling
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Drive Type
  • Electric
  • Power Source
  • Electric
  • Voltage
  • 200 Milliampere (mA)
  • Feature
  • High Performance, Touch Screen
  • Warranty
  • 1 year
Product Description

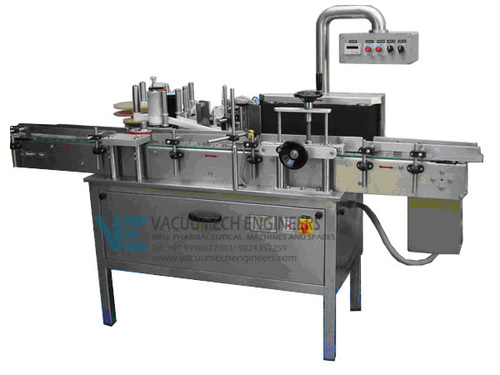

VSAL-120 Automatic Verticle Sticker Labelling Machine

  1. BRIFE DISCRIPTION

We are manufacturing and exporting of highly efficient Automatic sticker Labeling Machine. Some of the highlighted features of these machines are high speed, accurate labeling and convenient operation. VSAL 120 is used for precise labelling on jars, cartons and bottles. The machine operates at the speed of 100 containers per minute, depending upon the label length. The latest SERVO technology makes for precise placement of label and also for high output. Containers of different shapes and sizes can be accommodated on the same machine with or without the need for change parts.


  1. SPECIFICATIONS

  • Suitable for bottles in all shapes and sizes

  • Single Applicator Machine.

  • Servo Motor drive

  • PLC Based Control.

  • HMI Touch screen controls.


  1. TECHNICAL SPECIFICATION

Automatic Single Side (Either Front or Back) Sticker Labelling Machine

Model

VSAL-120

Output/Hour

5000/Hour

  • Label length

  • Label width

  • Label Placement

160mm maximum

100mm maximum

+/-1 mm (depending on product shape and nature)

Conveyor Height

780mm to 860mm adjustable

Conveyor Length

2450mm

Conveyor Width

80mm

Input Specification

  • Container Dia.

  • Container Height


25 mm. To 80 mm.

200 mm maximum.

Electrical Rating

  • Main Motor

  • Conveyor Drive

  • Pressing Device Drive


Servo Drive Motor

0.25 H.P AC Variable speed motor

0.25 H.P AC Variable speed motor

Power required

440 Volts, 50 Hz  & 220 Volts, 50 Hz.

Dimensions (in mm)

1700 L x 960 W x 1000 H

Weight

400Kgs.

Electric Load

    1. HP


  1. SALIENT FEATURES

  • Sticker Labeling For Single Side Labeling On Square / Rectangular / Oval / Flat And Such other Shapes Of Containers.

  • One touch automatic label detection and setup.

  • Synchronized label head and conveyor speed.

  • Custom designed for various shapes and sizes of HDPE / PET / Glass / Tin containers for wrap round labelling application.

  • It is widely used in pharmaceutical, chemical, food, cosmetics and other industries round bottle labelling adhesive.

  • No change parts required for various container & label size.

  • GMP conforming design. S.S-304 construction.


Note: Specification can be changed as per customer requirements.
