Automatic Single Head ROPP Cap Sealing Machine

Automatic Single Head ROPP Cap Sealing Machine
Automatic Single Head ROPP Cap Sealing Machine
Product Code : VARCS-50
Product Description

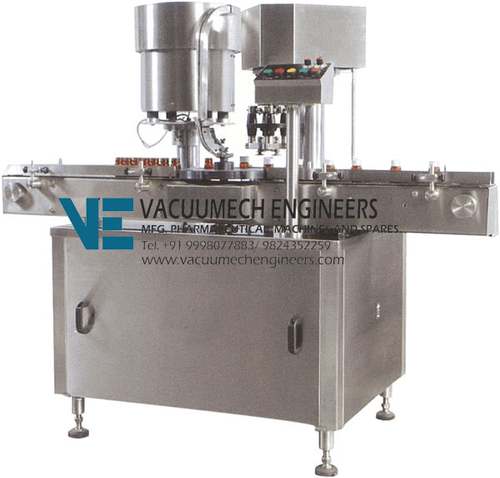

Automatic Single Head Ropp Cap Sealing Machine VARCS-50


(Photograph is for the reference purpose only. Machine Construction & Specification are subject to change without prior Notice due to Continues up-gradation Process)


Technical Specifications

Model

VARCS – 50

No. of sealing head

1

Output / Hour *

2000 to 3000

Direction of Movement

Left to Right

Electric Specifications

Main Motor

1 HP / 415 Volts / 50 Hz.

Cap Feeding Bowl

0.25 HP / 415 Volts / 50 Hz.

Height of Conveyor

860 ± 50 mm

Change parts required

(A) Container: Star Wheel, Center guide, Feed Worm

(B) Cap: Die & Delivery Chute


Input Specifications

ROPP Cap

Diameter

19 mm to 38 mm

Height

15 to 20 mm

Container Size

Round

Ø 22 mm to Ø 100 mm

Respective Height : 58 mm to 240 mm

Flat / Square

Length : 15 mm to 100 mm

Width : 10 mm to 50 mm

Height : 58 mm to 240 mm


Utility Requirement

Electric Supply

3 Phase + Neutral + Earthing

Electric Load

1.5kW


Salient Features

  • No container no cap arrangement

  • Rigid MS structure with elegantly matt finished SS cladding

  • Single motor synchronizes conveyor, star wheel, & platform turret

  • ACVFD for speed control

  • Adjustable height of conveyor belt to align with other machine of the line

  • Sealing pressure can be varied to suit different gauges and size of caps

  • Specially designed hopper is provided to increase storage capacity of bowl

  • Low noise level, low power consumptions

  • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction & allows smooth and noiseless conveying

  • Universal coupling for quick and easy setting of In-feed worm

  • Adjustable bottle height gauge for easy and quick setting

  • Acrylic enclosure in SS frame (optional)

  • No cap – machine stop arrangement (optional)

  • Motorized height adjustment (optional)
