Product Code : VRCS 50
Product Description

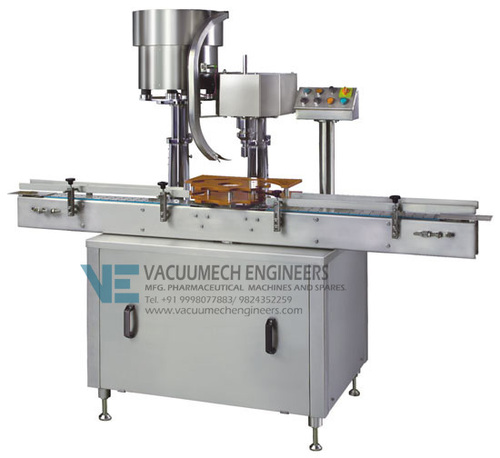

VRCS 50 Automatic Single Head Ropp Cap Sealing Machine

  1. BRIFE DISCRIPTION

Automatic Single Head Ropp Cap Sealing Machine is a compact machine that is extensively used for sealing of ROPP caps on the bottle. Highly versatile, the machine is self-supported on stainless steel leg along with height adaptable adjustment system. The machine is precision built on robust welded MS frame entirely enclosed in stainless steel sheet and doors are provided to allow the servicing of machine.


  1. TECHNICAL SPECIFICATION



Application

Suitable for Industries like Food and Beverages, Chemicals, Pharmaceuticals, Cosmetic, etc.

Machine is suitable for round or other shape of glass, plastic, PET, LDPE, HDPE bottles capping.

No. Of Head

Single Head

Model

VRCS – 50

Output/Hour

Upto 3000

Input specifications

  • Bottle size(Round)


  • Bottle size(Flat/Square)



  • ROPP Cap


Diameter : Ø 22 mm to Ø 100 mm

Height : 58 mm to 210 mm

Length : 15 mm to 100 mm

Width : 10 mm to 50 mm

Height : 58 mm to 240 mm

22mm, 25mm & 28mm

Conveyor Height

780mm to 860mm adjustable

Change parts required

(A) Container: Star Wheel, Center guide, Feed Worm

(B) Cap: Die & Delivery Chute

Electrical Rating

  • Main Motor


  • Conveyor Drive

  • Cap Feeding Bowl



1 H.P/415 Volts/ 50Hz AC motor

Synchronised

220 Volts / 50 Hz AC Variable Vibrator Card

Power required

220 Volts, 50Hz (1 Phase) + Earthing

Dimensions (in mm)

1210 L x 800 W x 2000 H (for Single Head Machine)

Weight(Approx)

350Kgs.


  1. SALIENT FEATURES

  • No container no cap arrangement

  • Rigid MS structure with elegantly matt finished SS cladding

  • Single motor synchronizes conveyor, star wheel, & platform turret

  • ACVFD for speed control

  • Adjustable height of conveyor belt to align with other machine of the line

  • Sealing pressure can be varied to suit different gauges and size of caps

  • Specially designed hopper is provided to increase storage capacity of bowl

  • Low noise level, low power consumptions

  • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction & allows smooth and noiseless conveying

  • Universal coupling for quick and easy setting of In-feed worm

  • Adjustable bottle height gauge for easy and quick setting

  • Acrylic enclosure in SS frame (optional)

  • No cap – machine stop arrangement (optional)

  • Motorized height adjustment (optional)

Note: Specification can be changed as per customer requirements.
