Automatic Screw Cap Sealing Machine - Single Head

Automatic Screw Cap Sealing Machine - Single Head
Automatic Screw Cap Sealing Machine - Single Head
Send Inquiry
Product Code : VASCS-50
Product Description

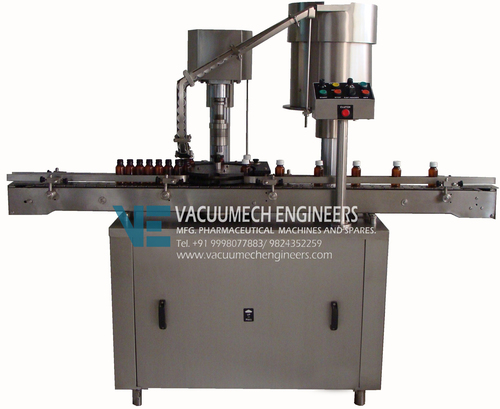

Automatic Single Head Screw Cap Sealing Machine VASCS-50

(Photograph is for the reference purpose only. Machine Construction & Specification are subject to change without prior Notice due to Continues up-gradation Process)

Technical Specifications


VASCS – 50

No. of sealing head


Output / Hour *

2000 to 3000

Direction of Movement

Left to Right

Electric Specifications

Main Motor

1 HP / 415 Volts / 50 Hz.

Cap Feeding Bowl

0.25 HP / 415 Volts / 50 Hz.

Height of Conveyor

860 ± 50 mm

Change parts required

(A) Container: Star Wheel, Center guide, Feed Worm

(B) Cap: Die & Delivery Chute

Input Specifications

Screw Cap


22 mm to 56 mm


15 to 40 mm

Container Size


Ø 22 mm to Ø 100 mm

Respective Height : 40 mm to 240 mm

Flat / Square

Length : 15 mm to 100 mm

Width : 10 mm to 50 mm

Height : 40 mm to 240 mm

Utility Requirement

Electric Supply

3 Phase + Neutral + Earthing

Electric Load


Salient Features

  • No container no cap arrangement

  • Rigid MS structure with elegantly matt finished SS cladding

  • Single motor synchronizes conveyor, star wheel, & platform turret

  • ACVFD for speed control

  • Adjustable height of conveyor belt to align with other machine of the line

  • Sealing pressure can be varied to suit different gauges and size of caps

  • Specially designed hopper is provided to increase storage capacity of bowl

  • Low noise level, low power consumptions

  • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction & allows smooth and noiseless conveying

  • Universal coupling for quick and easy setting of In-feed worm

  • Adjustable bottle height gauge for easy and quick setting

  • Acrylic enclosure in SS frame (optional)

  • No cap – machine stop arrangement (optional)

  • Motorized height adjustment (optional)
