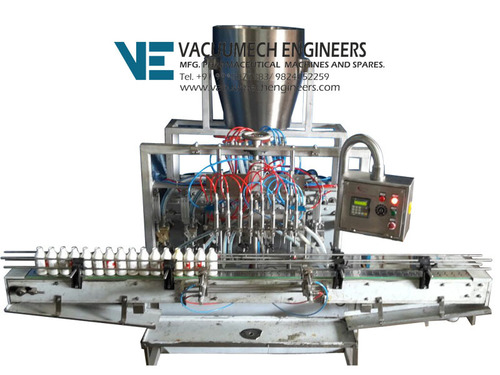

Automatic Multi head Paste Filling Machine

Automatic Multi head Paste Filling Machine
Automatic Multi head Paste Filling Machine
Product Code : VAVLF
Product Description

Automatic Multi Head Paste Filling Machine VAVLF


Application

Suitable for Industries like Food and Beverages, Chemicals, Pharmaceuticals, Cosmetic, etc.

Liquid Filling detergent, lube oil, food, condiment, alcohol, cosmetics, pharmaceutical, flavouring essence, automotive liquid and mineral water etc.

Technical Specifications

Model

VAVLF-50

VAVLF-100

VAVLF-150

VAVLF-200

Output/Hour*

1200 to 3000

2400 to 6000

3600 to 9000

5000 to 12000

Direction of Movement

Left to Right

Application

Application Filling Viscous Liquids in to the Bottles /Containers

Number of head/Syringe

2 Nos.

4 Nos.

6 Nos.

8 Nos.

Fill Size**

5 ml to 1000 ml

Electric Specifications

Main Machine

1 HP / 415 Volts / 50 Hz.

2 HP/ 415 Volts / 50 Hz.

Conveyor

0.5 HP / 415 Volts / 50 Hz.

Height of Conveyor

860 mm ± 50 mm Adjustable.

Change parts required

(A) Piston block, (B) Nozzle.


Input Specifications

Container Neck Diameter

Minimum 22 mm

Container Size

Round

Ø 28 mm to Ø 100 mm



Respective Height : 58 mm to 240 mm

Flat / Square

Length : 15 mm to 100 mm

Width : 10 mm to 50 mm

Height : 58 mm to 240 mm


Utility Requirement

Electric Supply

1 Phase +Neutral / 3 Phase + Neutral + Earthing

Electric Load

2 kW

Air Consumption

0.5 CFM @ 6 kg


Salient Features

  • ± 2 % Filling accuracy on single dose

  • No Bottle No Filling System

  • Rigid vibration free construction for trouble free performance

  • SS Elegantly matt finished body

  • Elegant and easy access control panel makes it user friendly

  • Minimum charge overtime from one size to another container or fill size

  • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction & allows smooth and noiseless conveying

  • Error code display on A/C frequency drive on control panel

  • Drain tray around machine platform

  • Drip tray under the conveyor

  • Pneumatic bottle stopping arrangement

  • Synchronized two nos. A/c drives for main motor & conveyor belt

  • Pneumatic diving mechanism

  • MCB for over load protection, and prevent against short circuit

  • Pre/post nitrogen flushing (optional)

  • In-built pre-inspection and chain washing (optional)
