Home » Products » Bottle Washing Machine » Automatic Inverted Air Jet Cleaning Machines

Automatic Inverted Air Jet Cleaning Machines

Automatic Inverted Air Jet Cleaning Machines
Automatic Inverted Air Jet Cleaning Machines
Send Inquiry
Product Code : VAJC-120
Product Description

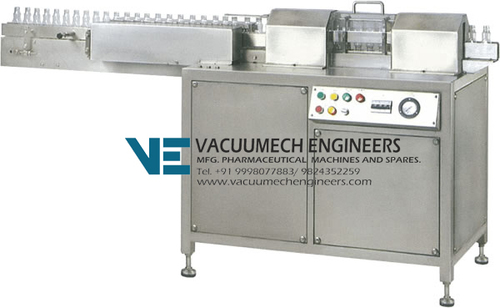

Automatic Inverted Air Jet Cleaning Machines VAJC-120

(Photograph is for the reference purpose only. Machine Construction & Specification are subject to change without prior Notice due to Continues up-gradation Process)


Technical Specifications

Model

VAJC-120

Head

Machine having four / six / Eight nozzles for vacuum cleaning with INFEED, OUT FEED Tunnel & Dust Collector Mechanism.

Output / Hour*

2400 – 7200

Electric Specifications

Main Motor

0.5 HP / 415 Volts / 50 Hz.

Blower Motor

0.5 HP / 415 Volts / 50 Hz.

Cleaning Cycle

Positive air pressure and vacuum cleaning

Working Height

860 mm ± 50 mm


Input Specifications

Container Size

Round bottles

30 mm to 60 mm diameter & 110 mm
height maximum


Utility Requirement

Electric Supply

3 Phase + Neutral + Earthing

Electric Load

1 kW

Air Consumption

10 CFM @ 4 to 6 Kg Pressure - Need to provide by customer


Salient Features

  • Positive air pressure and vacuum cleaning

  • Easy operation

  • Stationary S.S. nozzles in cleaning zone

  • Inverts the bottles before cleaning

  • Individual control for air pressure and vacuum cleaning

  • Higher capacity blower for accurate cleaning

  • S.S. pressure meter

  • Machine can be designed in double track configuration for higher output
